Spherely

class: center, middle, inverse

.center[
![:scale 40%](img/countries-round-.gif)
]

# The earth is no longer flat!

## Introducing Spherely and support for spherical geometries in GeoPandas

Joris Van den Bossche, PyCon DE, April 23, 2025

https://github.com/jorisvandenbossche/talks/

---

# About me

.larger[**Joris Van den Bossche**]

- Background: PhD bio-science engineer, air quality research
- Open source enthusiast: core developer of pandas, GeoPandas, Shapely, Apache Arrow (pyarrow), ...
- Currently working as a software engineer at Fused

.center[
.affiliations[
  ![:scale 50%](img/geopandas_logo.svg)
  ![:scale 35%](img/arrow-logo_horizontal_black-txt_transparent-bg.svg)
]
]

.center[
<a href="https://fosstodon.org/@jorisvandenbossche" style="color: var(--primary)"><img src="img/mastodon-svgrepo-com.svg" alt="Twitter logo" class="icon"> fosstodon.org/@jorisvandenbossche</a>
<a href="https://github.com/jorisvandenbossche" style="color: var(--primary)"><img src="img/icon_github.svg" alt="Github logo"  class="icon"> github.com/jorisvandenbossche</a>
]

.abs-layout.top-10.left-70[
  ![:scale 100%](img/Symbol-text-white-bg-transparent.svg)
]

---
class: inverse

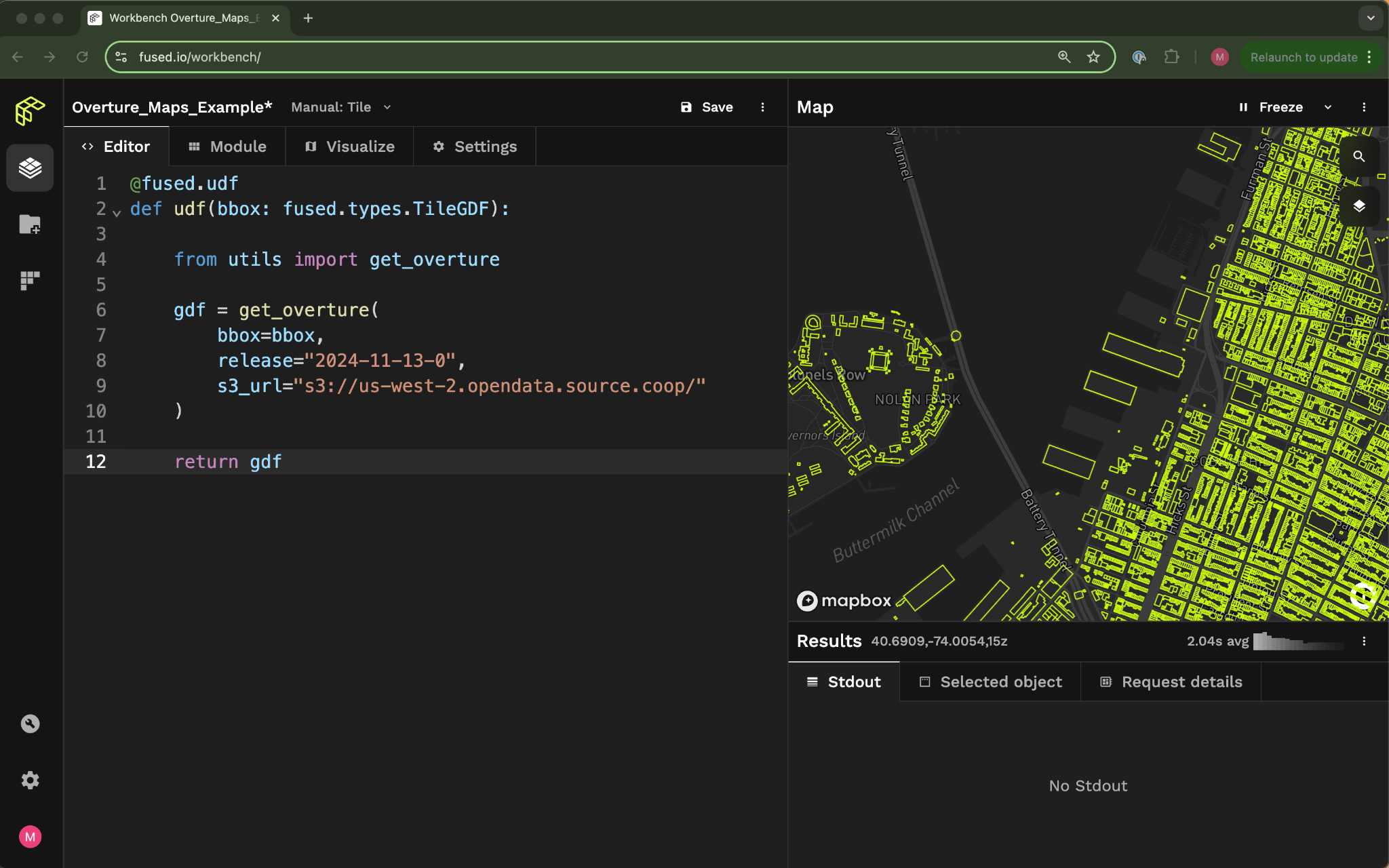

# Fused

### Build with data, instantly.

* Serverless Python at scale
  * Use the Python stack you are familiar with
  * Call from anywhere (Python, HTTP, ...)
  * Parallel processing and caching

* Geospatial focus
  * Ingest data into Cloud Native formats
  * Integrate with maps and web apps

.abs-layout.top-10.left-80[
  ![:scale 200%](img/Symbol-black-bg-transparent.svg)
]

.abs-layout.top-37.left-57[
  ![:scale 90%](img/fused-workbench.png)
]

--
count: false

.center[
## https://fused.io - We are hiring!
]

---

class: center, middle

# Your data is this:

### longitude: 7.59..., latitude: 47.56...

.bottom[.smaller-x[
From https://dewey.dunnington.ca/slides/s22021/
]]
---
class:
# ...but the world is not this:

.center[
![:scale 80%](img/illustration-world-flat.svg)
]

.bottom[.smaller-x[
From https://dewey.dunnington.ca/slides/s22021/
]]

---
class: inverse, center

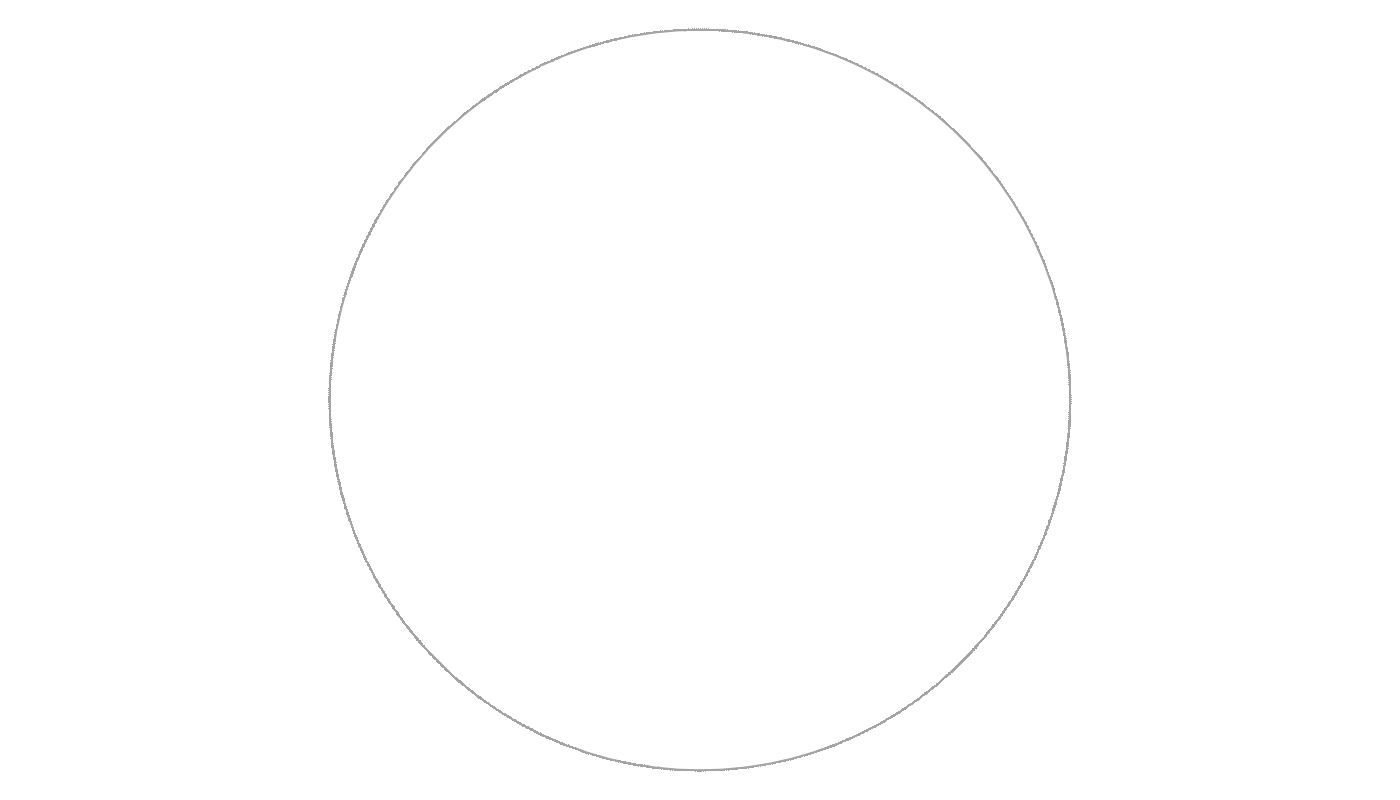

# it's this:

.center[
![:scale 70%](img/countries-round-.gif)
]

.bottom[.smaller-x[
From https://dewey.dunnington.ca/slides/s22021/
]]

---

# GeoPandas with geographical coordinates

```python
>>> land = geopandas.read_file(geodatasets.get_path("naturalearth.land"))
>>> land.geometry.buffer(1)
*UserWarning: Geometry is in a geographic CRS. Results from 'buffer' are likely incorrect.
*Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.
0      POLYGON ((-66.42576 -81.31759, -66.7624 -81.13...
1      POLYGON ((-163.65367 -79.70714, -164.10358 -79...
2      POLYGON ((-45.01324 -77.05713, -44.918 -77.075..
...
```

---

# GeoPandas with projected coordinates

Use a suitable projected CRS for your study area.

.center[
![:scale 55%](img/illustration-belgium.svg)
]

And this works perfectly fine if possible!<br>
For example, in Belgium we have Belgian Lambert 72, a.k.a. EPSG:31370)

---
# Why not using projected coordinates?

- my data is in latitude / longitude coordinates
- projection is not always trivial
  - choose a coordinate system depending on location, extent, etc.
  - may be computationally expensive
- boundary singularities, distortion.

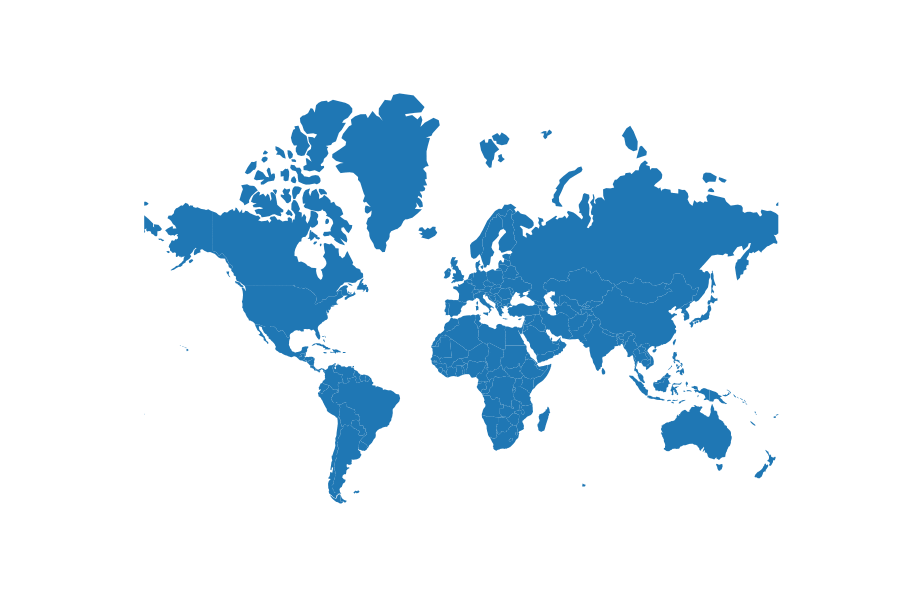

.center[![:scale 50%](./img/mercator_projection_area.gif)]

---

# Projecting global datasets

```python
>>> land.to_crs("EPSG:3857")  # Web Mercator
```

.center[![:scale 20%](./img/illustration-projection-mercator.svg)]

---

# Geometries crossing the anti-meridian

Example: Fiji - planar splitted geometries

.center[![:scale 80%](img/illustration-bbox-fiji-1.svg)]

---
count: false

# Geometries crossing the anti-meridian

Example: Fiji - planar bounding box

.center[![:scale 80%](img/illustration-bbox-fiji-2.svg)]

---

## Global analysis: which feature is within 500 km of land?

.center[
![:scale 80%](img/illustration-distance-land-1.svg)
]

---

## Great circles: shortest path on the sphere

.center[
![](img/illustration-great-circle-1.svg)
]

---

## Great circles: shortest path on the sphere

.center[
![](img/illustration-great-circle-2.svg)
]

---

## Great circles: shortest path on the sphere

.center[
![:scale 40%](img/illustration-great-circle-3.svg)
]

---
# Polygon edges

.center[
![](img/illustration-pole-polygon-1.svg)
]

.bottom[.small-x[
From https://r-spatial.org/r/2020/06/17/s2.html
]]

---
# Polygon edges

.center[
![:scale 40%](img/illustration-pole-polygon-2.svg)
]

---
# Polygon edges

.center[
![:scale 40%](img/illustration-pole-polygon-3.svg)
]

---

# The shape of the Earth

.cols[
.flex50[
.center.width-100[![:scale 60%](./img/flat-earth-blue.png)]
]
.flex50[
.center.width-100[![:scale 40%](./img/globe.png)]
]
]
.cols[
.flex50[
.center.larger.bold[NO!]
]
.flex50[
.center.larger.bold[YES!]
]
]

.center[.width-10[![](./img/globe-ellipse.png)].width-10[![](./img/geoid-blue.png)]]
.center.smaller-x[(Yes too)]

.bottom[.smaller-x[
From https://github.com/benbovy/geopython2023-spherely
]]

---

# s2geometry (C++)

- s2geometry (<https://s2geometry.io>) is an open-source spherical geometry engine and indexing system created and supported by Google
- The R package **s2** provides flexible R bindings for s2geometry using an interface similar to PostGIS and BigQuery Geography
- As of **sf** version 1.0.0, s2geometry is the default engine for geodetic coordinates
- The **s2geography** C++ package provides a compatibility layer on top of s2geometry providing a simple features API
- The new **spherely** package starts bindings to s2geometry through s2geography

---

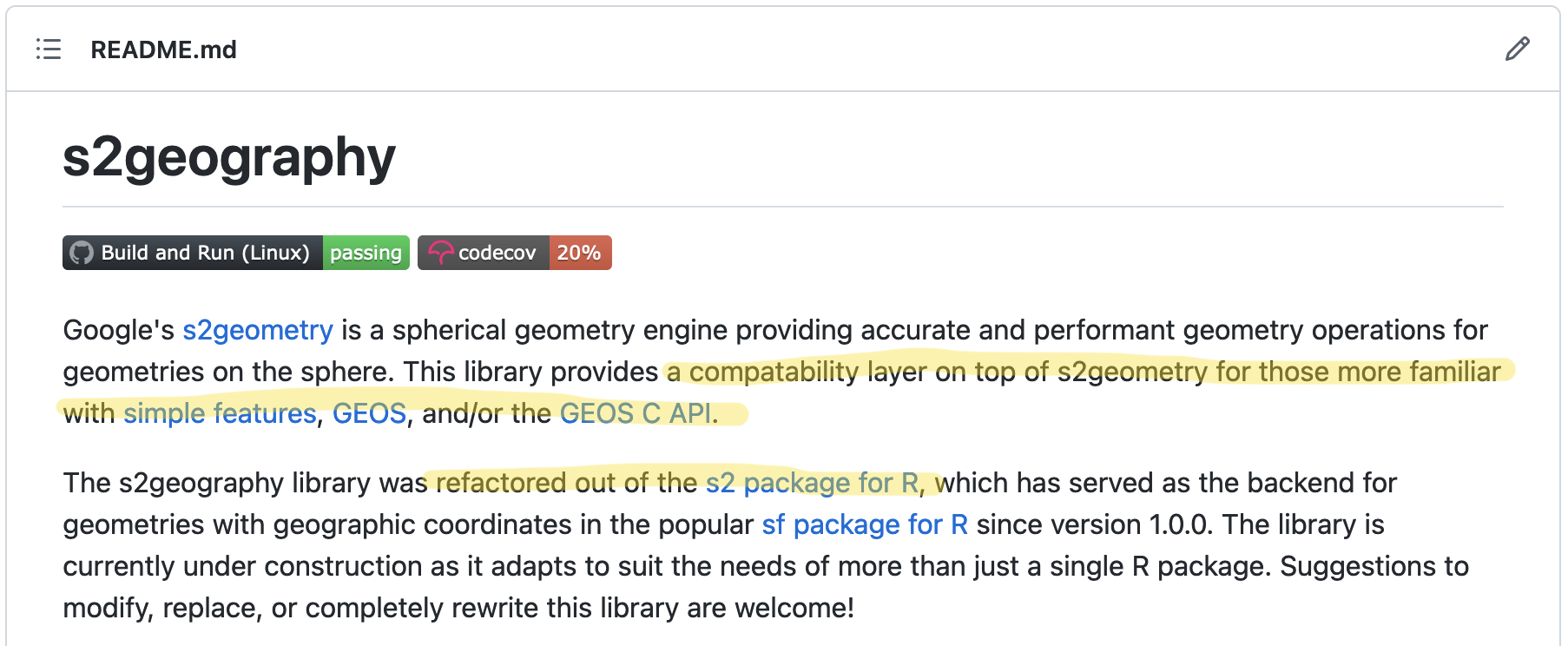

# S2Geography (C++)

.center.width-90[![](./img/s2geography_readme.png)]

https://github.com/paleolimbot/s2geography

---

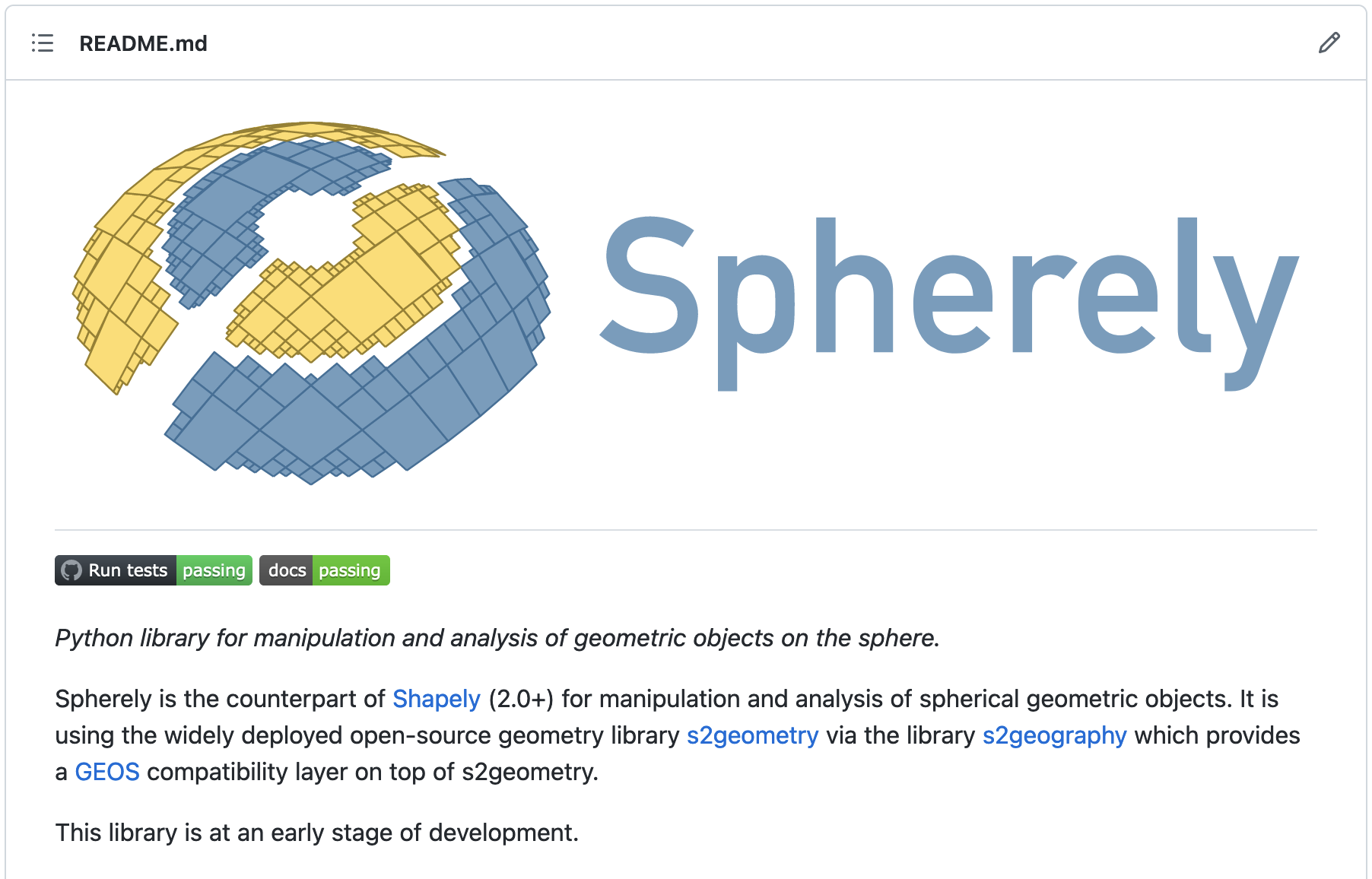

# Spherely (Python bindings)

.center.width-80[![](./img/spherely_readme.png)]

https://github.com/benbovy/spherely

???

# Spherely (Python bindings)

.center[![:scale 65%](./img/spherely_readme.png)]

https://github.com/benbovy/spherely

---
class: inverse, center, middle

# Spherely: like shapely, but on the sphere!

---

# Spherely's main features

- S2Geography (S2Geometry) Python bindings built with PyBind11
- Python / NumPy vectorized interface like Shapely 2.0
- Follow Shapely's API

.smaller-x[
```python
import numpy as np
import shapely

arr = np.array([
    shapely.LineString([(5000, 500), (5000, 700)]),
    shapely.LineString([(4500, 600), (5500, 600)]),
    shapely.LineString([(5000, 500), (4500, 200)]),
])

arr.dtype is np.dtype("O")
# True

isinstance(arr[0], shapely.Geometry)
# True

shapely.intersects(arr, shapely.Point(5000, 500))
# array([ True, False,  True])
```
]

---

# Spherely's main features

- S2Geography (S2Geometry) Python bindings built with PyBind11
- Python / NumPy vectorized interface like Shapely 2.0
- Follow Shapely's API

.smaller-x[
```python
import numpy as np
*import spherely

arr = np.array([
    spherely.create_linestring([(50, 5), (50, 7)]),
    spherely.create_linestring([(45, 6), (55, 6)]),
    spherely.create_linestring([(50, 5), (45, 2)]),
])

arr.dtype is np.dtype("O")
# True

isinstance(arr[0], spherely.Geography)
# True

spherely.intersects(arr, spherely.create_point(50, 5))
# array([ True, False,  True])
```
]

---

# Still early stage of development

The basic features are implemented in spherely 0.1.0:

- All geometry types (points, linestrings, polygons, etc) and basic creation functions
- Import from / export to WKT, WKB, GeoArrow
- Basic measurement functions: area, distance, length, perimeter
- Predicates: contains, within, intersects, equals, etc
- Overlays: union, intersection, difference, symmetric difference
- A few constructive operations: centroid, boundary, convex_hull

Full API reference: https://spherely.readthedocs.io/en/latest/api.html

---

# Still early stage of development

What is not yet implemented or work-in-progress, but we want to have:

- More functions: buffer, distance within, unary union, bounds, project/interpolate
- Making better use of spatial indexing (e.g. faster spatial join)
- S2 cell utilities
- ...
---
count: false

# Still early stage of development

What is not yet implemented or work-in-progress, but we want to have:

- More functions: buffer, distance within, unary union, bounds, project/interpolate
- Making better use of spatial indexing (e.g. faster spatial join)
- S2 cell utilities
- Integration with the Python geospatial ecosystem
  - GeoPandas backend .logo-small[![](./figs/geopandas_logo.png)]
  - Xvec (Xarray vector data cubes) .logo-small[![](./figs/xvec_logo.svg)]

---

## Example: point-in-polygon with South Pole

.abs-layout.top-20.left-65[
  ![:scale 100%](img/illustration-pole-polygon-3.svg)
]

```python
>>> import shapely

>>> polygon = shapely.from_wkt(
...     "POLYGON((-150 -65, 0 -62, 120 -78, -150 -65))"
... )
>>> pole = shapely.Point(0, -90)

>>> shapely.contains(polygon, pole)
False
```

--
count: false

With Spherely:

```python
>>> import spherely

>>> polygon = spherely.from_wkt(
...     "POLYGON((-150 -65, 0 -62, 120 -78, -150 -65))"
... )
>>> pole = spherely.make_point(-90, 0)

>>> spherely.contains(polygon, pole)
True
```

---

# Example: area calculation

---
class: inverse

# Demo using Fused

---

# Example: area calculation

```python
# Calculating the area using shapely by reprojecting to UTM first
>>> geoms_utm = gdf.geometry.to_crs(gdf.estimate_utm_crs())
>>> area_utm = geoms_utm.area

# Calculating the area using spherely
>>> area_spherical = spherely.area(geogs)

# Calculating the geodesic area using pyproj (ellipsoid model)
>>> from pyproj import Geod
>>> geod = Geod(ellps="WGS84")
>>> area_geod = [geod.geometry_area_perimeter(pol)[0] for pol in gdf.geometry]
```

Distance calculations on the sphere: accuracy within ~0.5%

Area calculations (example above) with local UTM zone is a bit more accurate compared to spherely,
but only if your data fits in one zone.

---

# Example: area calculation

Benchmark: ~6 million buildings in Flanders, Belgium (Overture data)

.center[![:scale 65%](./img/benchmark-area.svg)]

---

# Integration with GeoPandas 🚧

[Demo notebook](geopandas-spherely.ipynb)

This is early Work-in-Progress! (only a PR for now)

???

# Getting data into Spherely

# Challenges

- Spherical geometry ≠ planar geometry
  - Validation of geographic features (partially solved in s2geography?)
  - API compatibility with Shapely
  - [Dewey Dunnington & Edzer Pebesma FOSS4G 2021 talk](https://www.youtube.com/watch?v=zqRhF2XM1CE)
- Technical challenges
  - Using Pybind11 for Python bindings works great in general, but...
  - Python ↔ C++ conversion overhead! (some hacks used)
  - Some more hacks used to support `pybind11::vectorize` with Numpy's `object`
    dtype
  - No fine-grained control on releasing the GIL (e.g., inside
    `pybind11:vectorize` when a new array of `Geography` objects is returned or
    when checking the type of the array element)

???

# Using Pybind11

Efficient! .smaller-x[(quick & naive benchmark for trivial operations)]

.center.width-75[![](./figs/spherely_benchmark_trivial.png)]

# What's next? .smaller-x[(contributions are welcome!)]

- More features!
  - `Geography` subclasses (`Polygon`, `MultiXXX`, `GeographyCollection`)
  - S2Geography bindings (I/O, predicates, measurement, etc.)
  - Other...
- Packaging (all platforms)
.logo-small[![](./figs/conda-forge_logo.png)].logo-small[![](./figs/pypi_logo.svg)]
  - Conda-forge: s2geometry ✅, s2geography ✅, spherely ❌
  - PyPi (wheels)
- Documentation
- Integration with the Python geospatial ecosystem
  - GeoPandas backend .logo-small[![](./figs/geopandas_logo.png)]
  - Xvec (Xarray vector data cubes) .logo-small[![](./figs/xvec_logo.svg)]

---

# Getting started

Install:

```bash
pip install spherely
# or
mamba install spherely -c conda-forge
```

Documentation: https://spherely.readthedocs.io/en/latest/

Issues: https://github.com/benbovy/spherely

.bottom[
## Contributions very welcome!
]

---

# Thanks to

Spherely author: .smaller-x[Benoît Bovy]
<div style="margin-bottom:-20px"></div>

.width-10.circle[![](./img/me.jpg)]
<div style="margin-bottom:-10px"></div>

GeoPandas maintainers: .smaller-x[Joris Van den Bossche, Martin Fleischmann, Brendan Ward]
<div style="margin-bottom:-20px"></div>

.width-10.circle[![](./img/gh_jorisvandenbossche.png)]
.width-10.circle[![](./img/gh_martinfleis.png)]
.width-10.circle[![](./img/gh_brendan-ward.jpg)]
<div style="margin-bottom:-10px"></div>

R-Spatial maintainers: .smaller-x[Dewey Dunnington, Edzer Pebesma]
<div style="margin-bottom:-20px"></div>

.width-10.circle[![](./img/gh_paleolimbot.jpg)]
.width-10.circle[![](./img/gh_edzer.jpg)]
<div style="margin-bottom:-10px"></div>

S2Geometry maintainers

---

## Thanks for the attention! Questions?

Those slides:

- https://github.com/jorisvandenbossche/talks/
- http://jorisvandenbossche.github.io/talks/2025_PyConDE_spherely

Spherely:

* `pip install spherely` / `conda/mamba install spherely -c conda-forge`
* https://github.com/benbovy/spherely

.center[
![:scale 30%](img/Symbol-text-white-bg-transparent.svg)
]
