Pandas - On Blocks, Copies and Views

class: center, middle

![:scale 40%](img/pandas.svg)

# On Blocks, Copies and Views: updating pandas' internals

### a.k.a. Getting rid of the SettingWithCopyWarning

Joris Van den Bossche (Voltron Data)<br>
PyConDE & PyData Berlin, April 13, 2022

https://github.com/jorisvandenbossche/talks/<br>
[@jorisvdbossche](https://twitter.com/jorisvdbossche)

---

# About me

Joris Van den Bossche
<div style="margin-bottom:-20px"></div>

- Background: PhD bio-science engineer, air quality research
- Open source enthusiast: pandas core dev, geopandas maintainer, scikit-learn contributor
- Currently working part-time at Voltron Data on Apache Arrow

https://github.com/jorisvandenbossche   Twitter: [@jorisvdbossche](https://twitter.com/jorisvdbossche)

.affiliations[
  ![:scale 30%](img/apache-arrow.png)
  ![:scale 64%](img/voltrondata-logo-green.png)
]

---
class: center, middle

# On Blocks, Copies and Views: updating pandas' internals

### a.k.a. Getting rid of the SettingWithCopyWarning

---
class: center, middle

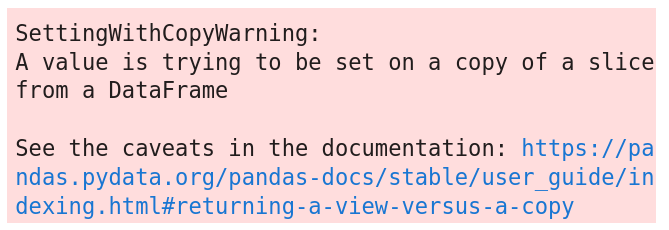

![](img/settingwithcopywarning.png)

---
class: center, middle, animated, heartBeat

![](img/scream.png)

---

.abs-layout[
  ![](img/blogpost_screenshot_1.png)
]

--
count:false

.abs-layout.bottom-1.right-50.width-20[

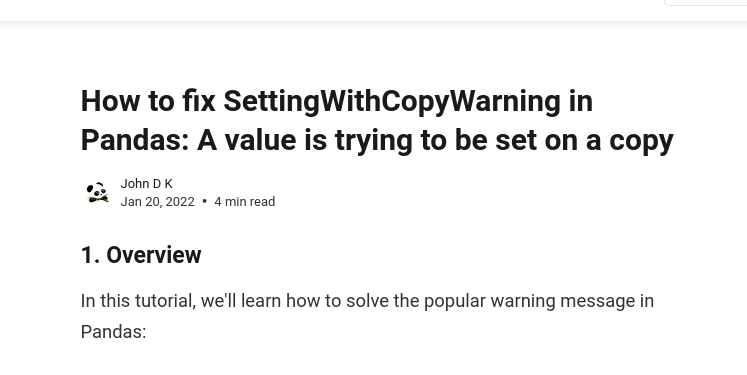

  ![](img/blogpost_screenshot_2.png)
]

--
count:false

.abs-layout.top-1.right-50.width-20[
  ![](img/blogpost_screenshot_3.png)
]

--
count:false

.abs-layout.bottom-1.left-0.width-20[

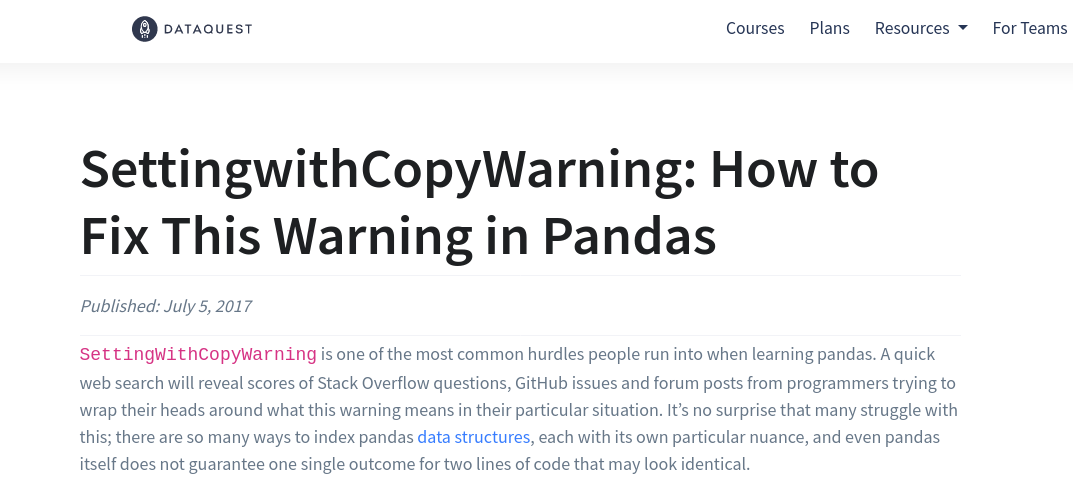

  ![](img/blogpost_screenshot_4.png)
]

--
count:false

.abs-layout[
  ![](img/blogpost_screenshot_5.png)
]

--
count:false

.abs-layout.bottom-1.right-50.width-20[
  ![](img/blogpost_screenshot_6.png)
]

---

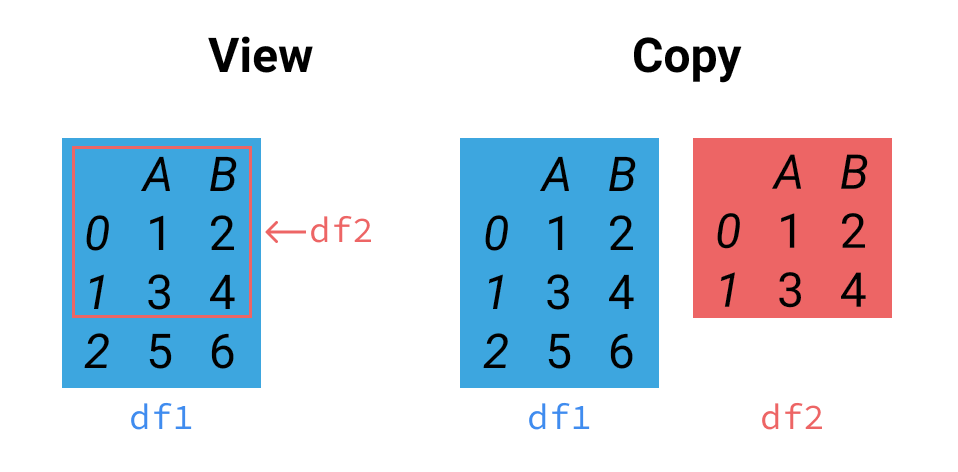

# Copy vs view

.center[
![:scale 80%](img/view-vs-copy.png)
]

Images from https://www.dataquest.io/blog/settingwithcopywarning/

---
count: false

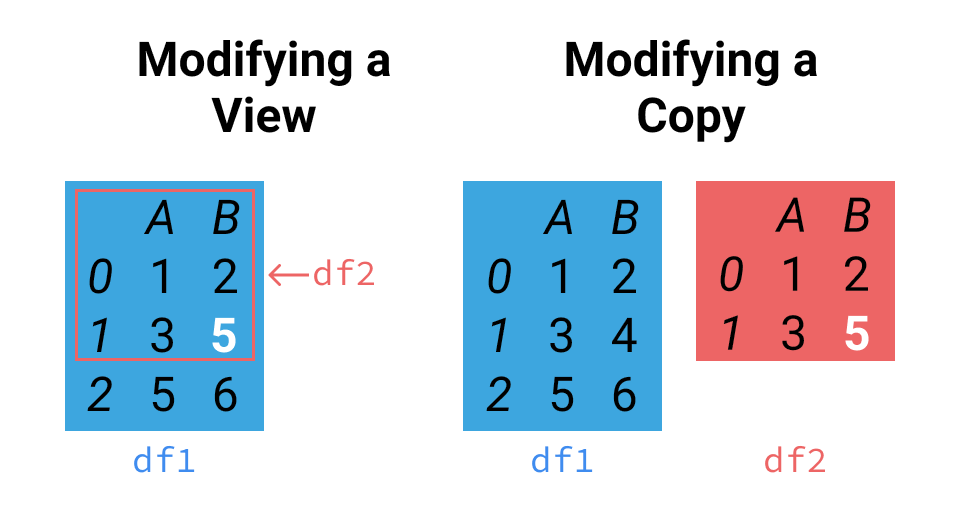

# Copy vs view

.center[
![:scale 80%](img/view-vs-copy-modifying.png)
]

Images from https://www.dataquest.io/blog/settingwithcopywarning/

---

## Examples: filtering rows with a boolean mask

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[df["A"] > 1]
>>> subset.loc[1, "A"] = 10
# SettingWithCopyWarning:
# A value is trying to be set on a copy of a slice from a DataFrame.
# Try using .loc[row_indexer,col_indexer] = value instead
#
# See the caveats in the documentation: ...
```

Did `df` change as well?

--
count: false

.larger[➔ No!]

---

## Examples: slicing rows

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[1:2]
>>> subset.loc[1, "A"] = 10
# SettingWithCopyWarning:
# A value is trying to be set on a copy of a slice from a DataFrame.
# Try using .loc[row_indexer,col_indexer] = value instead
#
# See the caveats in the documentation: ...
```

Did `df` change as well?

--
count: false

.larger[➔ Yes!]

---

## Examples: subsetting columns

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[["A", "B"]]
>>> subset.loc[1, "A"] = 10
# SettingWithCopyWarning:
# A value is trying to be set on a copy of a slice from a DataFrame.
# Try using .loc[row_indexer,col_indexer] = value instead
#
# See the caveats in the documentation: ...
```

Did `df` change as well?

--
count: false

.larger[➔ No!]

---

## Examples: selecting a single column

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df["A"]
>>> subset[1] = 10
```

Did `df` change as well?

--
count: false

.larger[➔ Yes!]

---

# Current situation

Problems with the current copy / view semantics of pandas:

- This is confusing for many users
- You need to be aware of copy/view details of numpy
- You need defensive (and unncecessary) copying to avoid the warning

???

Copies and views in NumPy

explain a view in numpy

slicing gives view, mask gives copy

---

# The SettingWithCopyWarning

To avoid "chained assignment (setitem)" pitfalls:

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
>>> df["C"][df["A"] > 1] = 10  # this works
>>> df[df["A"] > 1]["C"] = 10  # this doesn't work
```

--
count: false

Rewriting the second case:

```python
>>> temp = df[df["A"] > 1]
>>> temp["C"] = 10
```

--
count: false

Our previous example:

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
>>> subset = df[df["A"] > 1]
...
>>> subset["C"] = 10
```

---

# The SettingWithCopyWarning

How to "solve" the warning?

--
count: false

I want do update `df` -> setitem in one go

```python
>>> df[df["A"] > 1]["C"] = 10      # this doesn't work
>>> df`.loc[df["A"] > 1, "C"]` = 10  # this works
```

Or use `.assign(A=...)` method instead.

--
count: false

I don't want to update `df` -> explicit (unnecessary) `copy()`

```python
>>> subset = df[df["A"] > 1]`.copy()`
...
>>> subset["C"] = 10
```

---

# Current situation

Problems with the current copy / view semantics of pandas:

- This is confusing for many users
- You need to be aware of copy/view details of numpy
- **You need defensive (and unncecessary) copying to avoid the warning**

---

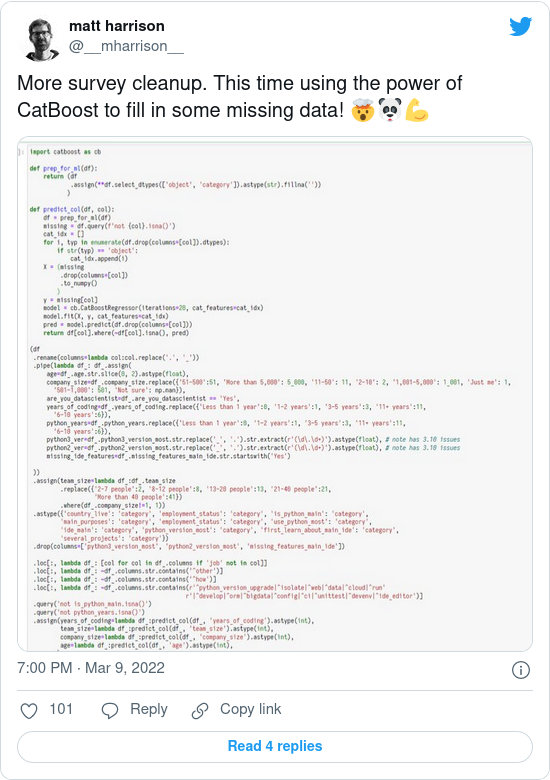

## Intermezzo: copies and method chaining

.center[
![:scale 60%](img/tweet-matt-harrison.png)
]

---

## Intermezzo: copies and method chaining

Which steps of this workflow copy the DataFrame?

```python
(df
  .rename(columns=lambda col: col.replace(".", "_"))
  .assign(team_size=lambda df_: df_.team_size.replace(...))
  .astype({'employment_status': "category", ...})
  .drop(columns=[...])
  .dropna(subset="year")
  .reset_index()
)
```

---
count: false

## Intermezzo: copies and method chaining

Which steps of this workflow copy the DataFrame?

```python
(df
* .rename(columns=lambda col: col.replace(".", "_"))
* .assign(team_size=lambda df_: df_.team_size.replace(...))
* .astype({'employment_status': "category", ...})
* .drop(columns=[...])
  .dropna(subset="year")
* .reset_index()
)
```

--
count: false

The `inplace` keyword *sometimes* avoids the copy, but is not recommended.

---

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *behaves as* a copy.*

--
count: false

Or put differently, the implication is:

> *Mutating a DataFrame only changes the object itself, and not any other.*

> *If you want to change values in a DataFrame or Series, you can only do that by directly mutating the DataFrame/Series at hand*.

---

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *behaves as* a copy.*

Advantages:

- A simpler, more consistent user experience
- We can get rid of the SettingWithCopyWarning (since there is no confusion about whether we are mutating a view or a copy)
- We would no longer need defensive copying in many places in pandas, improving memory usage

---
count: false

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *behaves as* a copy.*

Advantages:

- **A simpler, more consistent user experience**
- We can get rid of the SettingWithCopyWarning (since there is no confusion about whether we are mutating a view or a copy)
- We would no longer need defensive copying in many places in pandas, improving memory usage

---

## Examples: filtering rows with a boolean mask

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[df["A"] > 1]
>>> subset.loc[1, "A"] = 10
```

Did `df` change as well?

--
count: false

No, `subset` is a different object, so mutating `subset` does not change `df`.

---

## Examples: slicing rows

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[1:2]
>>> subset.loc[1, "A"] = 10
```

Did `df` change as well?

--
count: false

No, `subset` is a different object, so mutating `subset` does not change `df`.

---

## Examples: subsetting columns

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df[["A", "B"]]
>>> subset.loc[1, "A"] = 10
```

Did `df` change as well?

--
count: false

No, `subset` is a different object, so mutating `subset` does not change `df`.

---

## Examples: selecting a single column

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
*>>> subset = df["A"]
>>> subset[1] = 10
```

Did `df` change as well?

--
count: false

No, `subset` is a different object, so mutating `subset` does not change `df`.

---

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *behaves as* a copy.*

Advantages:

- A simpler, more consistent user experience
- **We can get rid of the SettingWithCopyWarning** (since there is no confusion about whether we are mutating a view or a copy)
- We would no longer need defensive copying in many places in pandas, improving memory usage

---

# The SettingWithCopyWarning

With current pandas:

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
# two examples of chained assignment
>>> df["C"][df["A"] > 1] = 10  # this works
>>> df[df["A"] > 1]["C"] = 10  # this doesn't work
```

--
count: false

With proposal: both examples don't work

--
count: false

```python
>>> temp = df["C"]
>>> temp[temp["A"] > 1] = 10
```

Chained assignment will never work -> we don't need a warning.

---

# The SettingWithCopyWarning

With current pandas:

```python
>>> df = pd.DataFrame({"A": [1, 2], "B": [3, 4], "C": [5, 6]})
>>> subset = df[df["A"] > 1]`.copy()`
...
>>> subset["C"] = 10
```

With proposal: additional `copy()` is no longer needed to avoid the warning.

---

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *<span class="remark-code-span-highlighted">behaves as</span>* a copy.*

Advantages:

- A simpler, more consistent user experience
- We can get rid of the SettingWithCopyWarning (since there is no confusion about whether we are mutating a view or a copy)
- **We would no longer need defensive copying in many places in pandas, improving memory usage**

---

## Hiding copy/view details with Copy-on-Write

Guarantee == "behaves as a copy"

Copy-on-Write: usage of views becomes internal implementation detail

---
## Hiding copy/view details with Copy-on-Write

`subset = df[["A", "B"]]`

.center[
![:scale 60%](img/schema-copy-on-write-1.svg)
]

--
count: false

Modify subset: `subset.loc[1, "A"] = 10` -> only copy data now

.center[
![:scale 60%](img/schema-copy-on-write-2.svg)
]

---

## Avoiding copies in method chaining

Which steps of this workflow copy the DataFrame?

---

# Can we do better?

A proposal for simplified behaviour using a single rule:

> *Any DataFrame or Series derived from another in any way (e.g. with an indexing operation) always *behaves as* a copy.*

Advantages:

---

# This is a proposal, not already in pandas

Blogpost: https://jorisvandenbossche.github.io/blog/2022/04/07/pandas-copy-views/

Full proposal: https://docs.google.com/document/d/1ZCQ9mx3LBMy-nhwRl33_jgcvWo9IWdEfxDNQ2thyTb0/edit#heading=h.iexejdstiz8u

Related GitHub issue: https://github.com/pandas-dev/pandas/issues/36195

## Feedback welcome!

---
class: middle

# Thanks for listening!

### Those slides: https://github.com/jorisvandenbossche/talks/

---

# The BlockManager

Blogpost of Uwe Korn: *The one pandas internal I teach all my new colleagues: the BlockManager*

https://uwekorn.com/2020/05/24/the-one-pandas-internal.html
