contextily

%matplotlib inline

import contextily as ctx
import geopandas as gpd
import rasterio as rio
import numpy as np
import matplotlib.pyplot as plt

# Data
from pysal.lib.examples import get_path

In this notebook, we will show the basic functionality available in contextily, a package to work with web-tiles for background maps. To do that, we will use additional data to illustrate contextily can be integrated with other libraries such as geopandas and rasterio. However, it is important to note that some of those are NOT required by contextily.

Let us first load up from PySAL the polygons of the 48 contiguous states using geopandas. We’ll pick out Texas and, since our data is not projected by default, set its default coordinate reference system.

To do this:

tx = gpd.read_file(get_path('us48.shp')).set_index('STATE_ABBR').loc[['TX'], 'geometry']
tx.crs = {'init': 'epsg:4326'}
tx['TX']

We can get the bounding box from the polygon itself:

w, s, e, n = tx['TX'].bounds
w, s, e, n

(-106.6495132446289, 25.845197677612305, -93.50721740722656, 36.49387741088867)

Or, if we had a geodataframe with many elements, we could also get the total bounding box for all elements in the frame:

w, s, e, n = tx.total_bounds
w, s, e, n

(-106.6495132446289, 25.845197677612305, -93.50721740722656, 36.49387741088867)

Simplified plotting

The simplest way to access contextily and get a background map to go with your geographic data is to use the add_basemap method. Assuming you have a GeoDataFrame (such as tx) and is projected to Web Mercator (EPSG= 3857), you can simply:

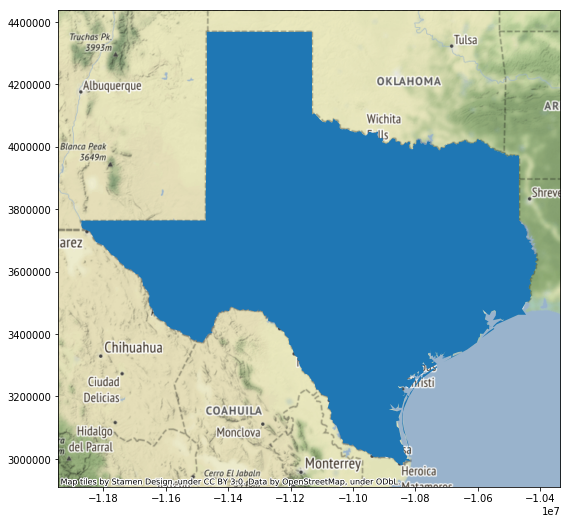

ax = tx.to_crs(epsg=3857).plot(figsize=(9, 9))
ctx.add_basemap(ax);

Download tiles

At this point, we can use those bounds to download the tiles for that part of the world. Before that, however, it is convenient to make sure the download will not be too heavy (i.e. not too many tiles). This is easily checked by using the howmany utility:

_ = ctx.howmany(w, s, e, n, 6, ll=True)

Using zoom level 6, this will download 9 tiles

At the zoom level 6, we need to download 9 tiles, which is not too onerous. Let us then go ahead and download them:

%time img, ext = ctx.bounds2img(w, s, e, n, 6, ll=True)

CPU times: user 10 ms, sys: 0 ns, total: 10 ms
Wall time: 16.8 ms

That’s it! Just under three seconds and we have a map under our fingertips! Note how bounds2img also returns the extent that the tile covers. This will come in handy later on when we want to align it with more data.

IMPORTANT: the tile extent is always returned in Spherical Mercator (EPSG:3857). This means that the data you want to map (like ours in tx) may have a different projection than that returned from bounds2img.

Let us quickly visualize it with matplotlib:

plt.imshow(img, extent=ext);

Save tiles into raster files

Sometimes, we know we will be working with an area for a while and it is more convenient to download the tiles only once and then load them up on-demand. To do that, we can use the function bounds2raster, which writes the image into a GeoTIFF raster file:

%time _ = ctx.bounds2raster(w, s, e, n, 'tx.tif', ll=True)

CPU times: user 460 ms, sys: 230 ms, total: 690 ms
Wall time: 3.56 s

Search for tiles with text

You can also directly search for tiles using the Place class. This allows you to search with text. It will grab the tiles associated with that search (using GeoPy geocoding) so that you can plot them.

zoom=7
loc = ctx.Place("texas", zoom=zoom)

fig, axs = plt.subplots(1, 2, figsize=(10, 5))

# Grab the image associated with this search and plot it
ctx.plot_map(loc.im, ax=axs[0], title='Using Place')

# Manually find this tile using the Place's bounds
zoom = ctx.tile._calculate_zoom(loc.w, loc.s, loc.e, loc.n)
im2, bbox = ctx.bounds2img(loc.w, loc.s, loc.e, loc.n, zoom=zoom, ll=True)
ctx.plot_map(im2, bbox, ax=axs[1], title='Using bounds2img')

plt.show()

Read raster tiles and combine with vector data

At this point, using the tile map is exactly the same as using any other raster file. For this, we will use the fantastic library rasterio.

Let us see how we can load it back up and plot it (all of this is standard rasterio operations, check out its documentation for more detail if interested).

rtr = rio.open('tx.tif')

# NOTE the transpose of the image data
img = np.array([ band for band in rtr.read() ]).transpose(1, 2, 0)
# Plot
plt.imshow(img, extent=rtr.bounds);

Sometimes, raster files can be (very) large and we are not particularly interested in loading the entire file. For those cases, rasterio includes functionality to load up a specific part -window- of the raster. The function bb2wdw in contextily makes it easy to create that window from Mercator coordinates:

# Mercator coordinates for Houston area
hou = (-10676650.69219051, 3441477.046670125, -10576977.7804825, 3523606.146650609)

# Window
wdw = ctx.tile.bb2wdw(hou, rtr)
# Raster subset
sub = np.array([ rtr.read(band, window=wdw) \
      for band in range(1, rtr.count+1)]).transpose(1, 2, 0)
# Plot

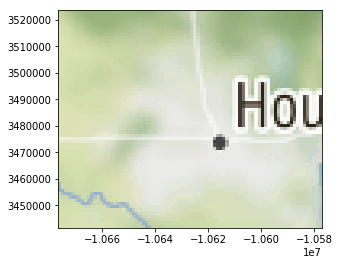

plt.imshow(sub, extent=(hou[0], hou[2], hou[1], hou[3]));

Combine layers

One of the most interesting applications of using these tiles is to employ them as basemaps to overlay additional data on top of them. This can be easily done with matplotlib, provided all the data are in the same CRS at the time of plotting.

Let us see how one would go about plotting the polygon for the state of Texas on top of the raster file:

# Shortify the bound box named tuple
bb = rtr.bounds
# Set up the figure
f, ax = plt.subplots(1, figsize=(9, 9))
# Load the tile raster (note the re-arrangement of the bounds)
ax.imshow(img, extent=(bb.left, bb.right, bb.bottom, bb.top))
# Overlay the polygon on top (note we reproject it to the raster's CRS)

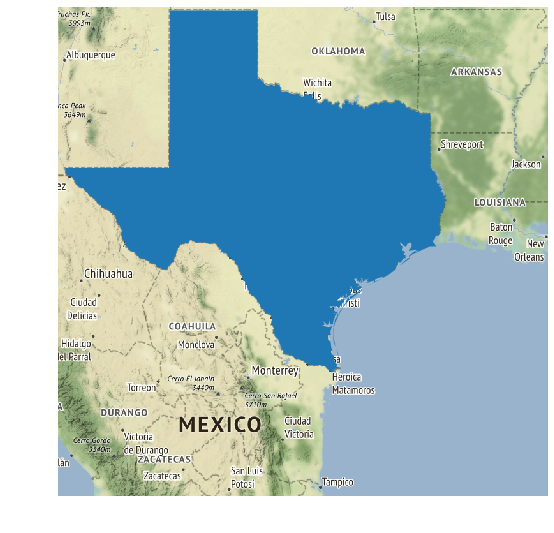

tx.to_crs(rtr.crs).plot(edgecolor='none', ax=ax)
# Remove axis for aesthetics
ax.set_axis_off()
# Show
plt.show()

If we remember that our tiles are served in Spherical Mercator projection, we can also plot without saving our tiles to a file:

#fetch image using the bounding box:
image, extent = ctx.bounds2img(w, s, e, n, 6, ll=True)
# Set up the figure
f,ax = plt.subplots(1, figsize=(9,9))
# Load the tile raster
# (note that the extent returned by bounds2img
# corresponds directly to matplotlib bounds)
ax.imshow(image, extent=extent)
# Overlay the polygon on top
# Note we reproject the vector to webmercator, which has an epsg code of 3857

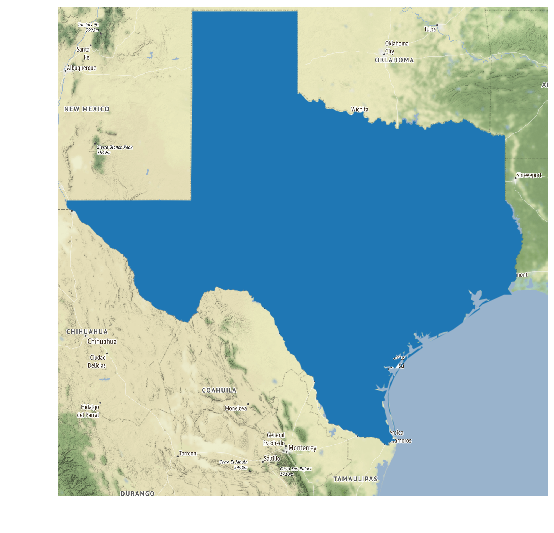

tx.to_crs(epsg=3857).plot(edgecolor='none', ax=ax)
# Remove axis for aesthetics
ax.set_axis_off()
# Show
plt.show()

Different backgrounds

contextily gives access to several tile maps, all from the awesome people at Stamen. The full list is:

sources = [i for i in dir(ctx.tile_providers) if i[0]!='_']
sources

['OSM_A',
 'OSM_B',
 'OSM_C',
 'ST_TERRAIN',
 'ST_TERRAIN_BACKGROUND',
 'ST_TERRAIN_LABELS',
 'ST_TERRAIN_LINES',
 'ST_TONER',
 'ST_TONER_BACKGROUND',
 'ST_TONER_HYBRID',
 'ST_TONER_LABELS',
 'ST_TONER_LINES',
 'ST_TONER_LITE',
 'ST_WATERCOLOR']

You can set them on bounds2img and bounds2raster using the argument url. Checkout the documentation for more details.

Just because we can, let us get a feel for what they look like:

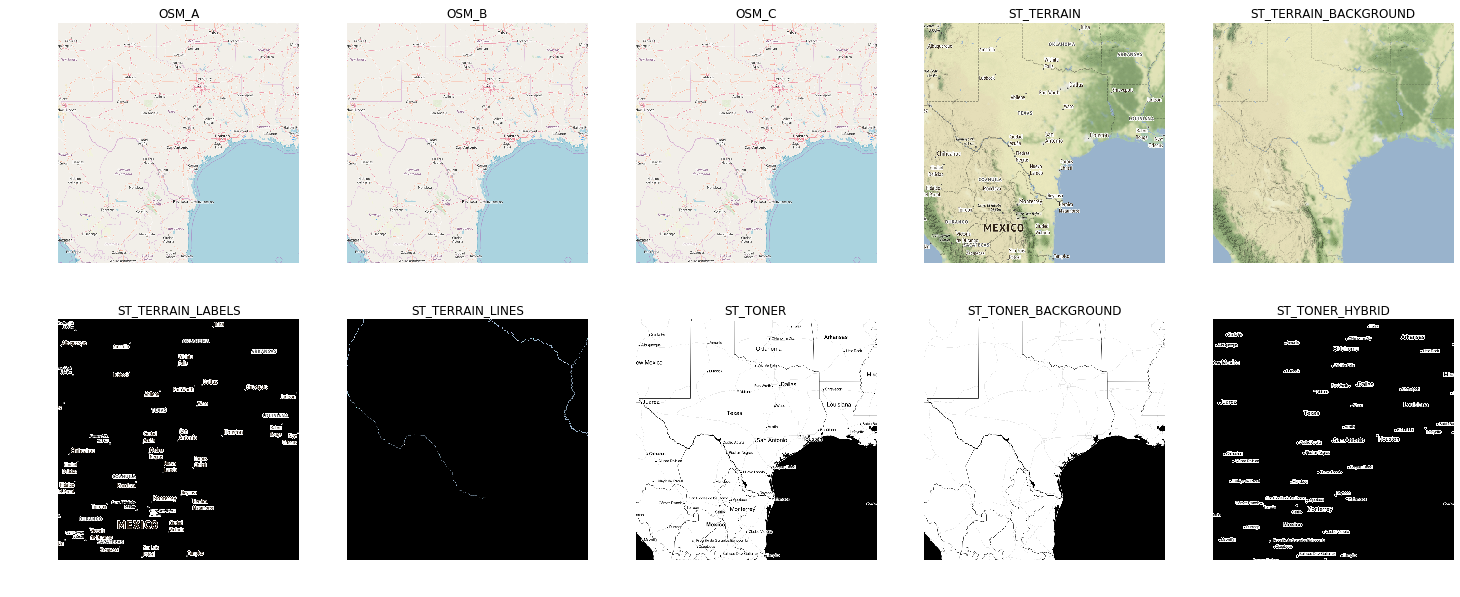

f, axs = plt.subplots(2, 5, figsize=(25, 10))
axs = axs.flatten()
for src, ax in zip(sources, axs):
    img, ext = ctx.bounds2img(w, s, e, n, 6, url=getattr(ctx.sources, src), ll=True)
    ax.imshow(img, extent=ext)
    ax.set_title(src)
    ax.set_axis_off()
plt.show()

NOTE Please always remember to give proper attribution to the map provider. See here for the proper way to do it, but essentially it is:

• Toner and Terrain:

Map tiles by Stamen Design, under CC BY 3.0. Data by OpenStreetMap, under ODbL.

• Watercolor:

Map tiles by Stamen Design, under CC BY 3.0. Data by OpenStreetMap, under CC BY SA.

contextily: context geo tiles in Python Tests for warping functionality
